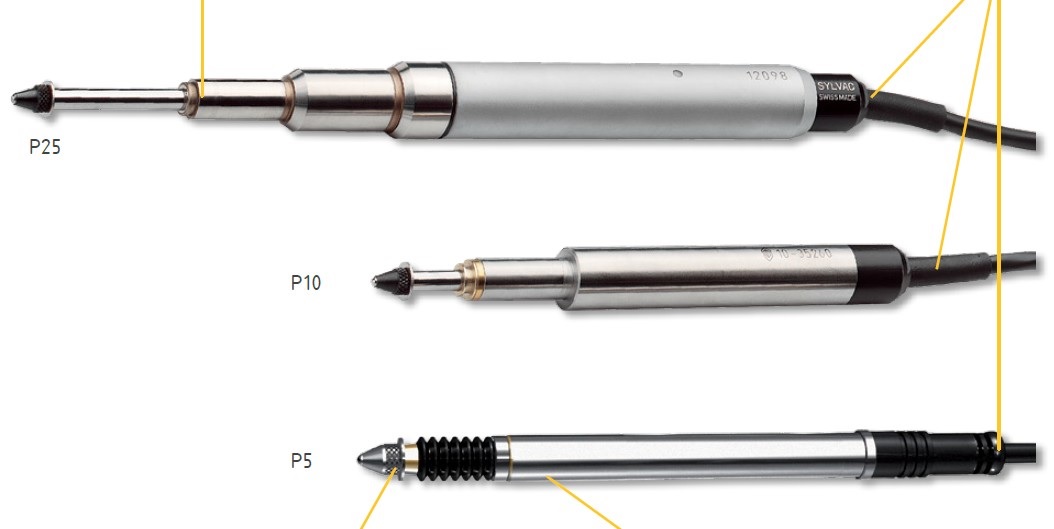

SYLVAC電感測頭P5 P10 P25描述

?筆式電容式絕對測量探頭

?分辨率0.0001毫米

?測量范圍從5毫米到25毫米

?普通軸承或滾珠軸承，一體化真空提升機P5

與所有的Sylvac數字單位兼容

?良好的線性

?大多數類型的可互換電纜

SYLVAC電感測頭P5 P10 P25技術參數：

型號	P5	P10		P25
		P10	P10S	P25	P25S
行程Travel mm	5	10		25
精度Pre-travel mm	0.7	0.5		0.8
誤差Max. Error 1) μm	1	1		1.2
分辨率Repeatability μm	0.2	0.2		0.2
重量Moving mass g	3.7	4.1		9.6
測力
標準Standard N	0.60-1.20	0.60-0.80	0.70-1.25	0.60-1.00	0.65-1.4
低Minimum N	---	< 0.10	---	< 0.15	---
低Low N	0.20-0.25	0.20-0.25	---	0.20-0.30	---
高High N	1.00-1.80	0.70-1.50	---	0.70-1.60	---
大Lateral max N	0.7	0.6	---	0.3	---

1) With Master unit. See as well the specifications of the pair Measuring probe/display unit.
Tolerance ± 20%, measuring probe in vertical position, outgoing spindle.

筆式測微計P5 P10 P25訂貨號：

P5				P10				P25
P5	900.1001	P5BV	900.1005	P10	900.101	P10LLF	900.1014.91	P25	900.1025	P25S	900.1027
P5BL	900.1002	P5L	900.1006	P10LF	900.1010.91
P5V	900.1003	P5BVL	900.1007	P10S	900.1012	P10LS	900.1016
P5B	900.1004	P5LV	900.1008	P10L	900.1014

B = ball bearing / V = Vacuum lifter / L = 90° cable / LF = low force / S = with rubber boot

SYLVAC電感測頭P5 P10 P25尺寸：

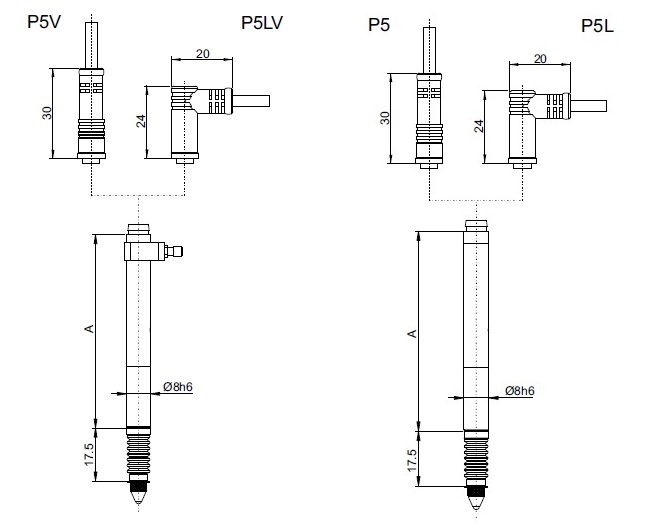

P5尺寸：

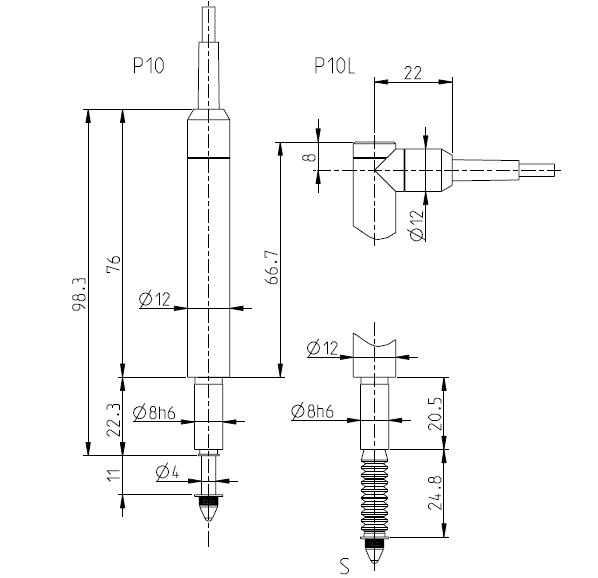

P10尺寸：

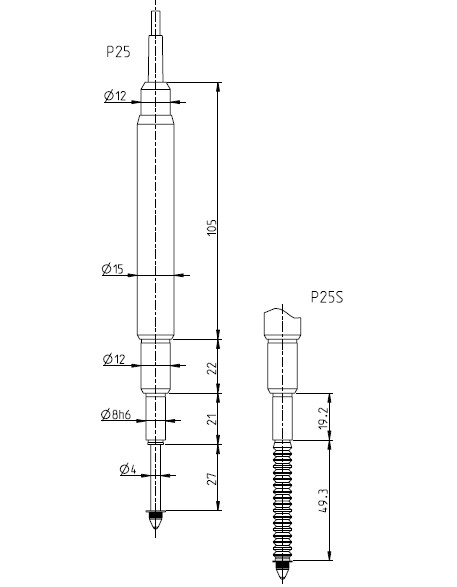

P25尺寸：

SYLVAC電感測頭P5 P10 P25標準配置

根據技術規格探針

校準證書

電纜1.5

不銹鋼接觸點與碳化鎢球?2毫米(905.2204)

SYLVAC電感測頭P5 P10 P25應用：

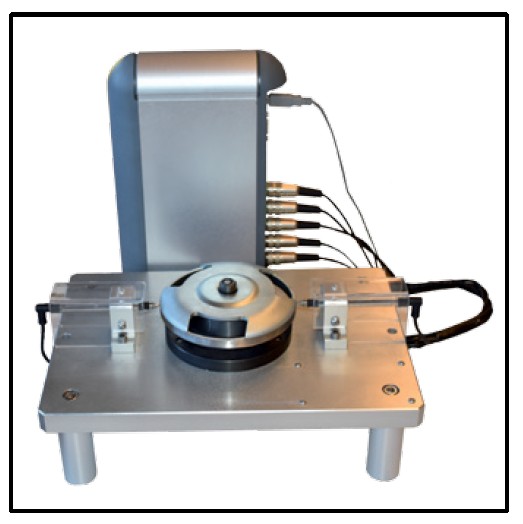

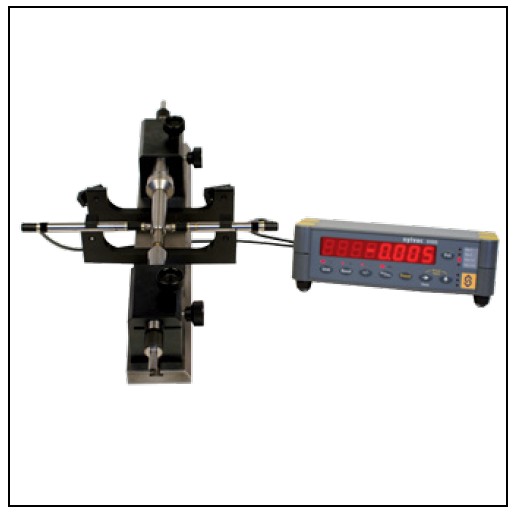

P5 probes connected to a D302 coupled with D300S for OD, concentricity and cylindricity measurements

P5探針連接到D302，外加D300S用于OD、同心度和圓柱度測量

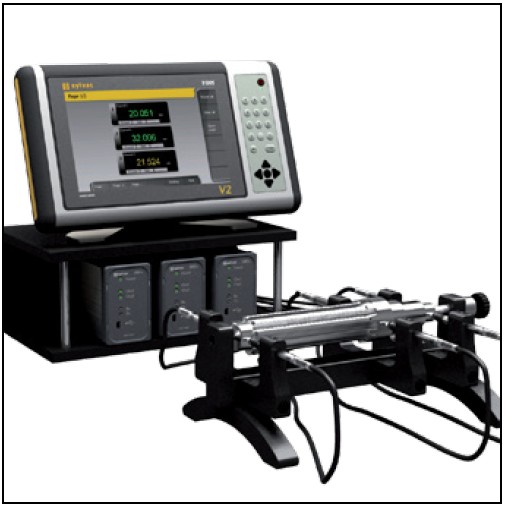

P5 probes connected to a D50S unitmeasuring the external diameter of a shaft

P5與D50S連接測量軸外徑

多個組合滿足不同高度的測量

Combined probes for the measurement of several heights

與D70S連接

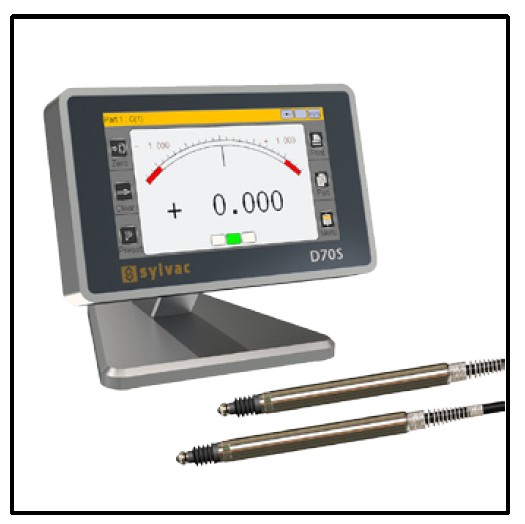

Capacitive probes connected to a D70S.

與D200S連接應用

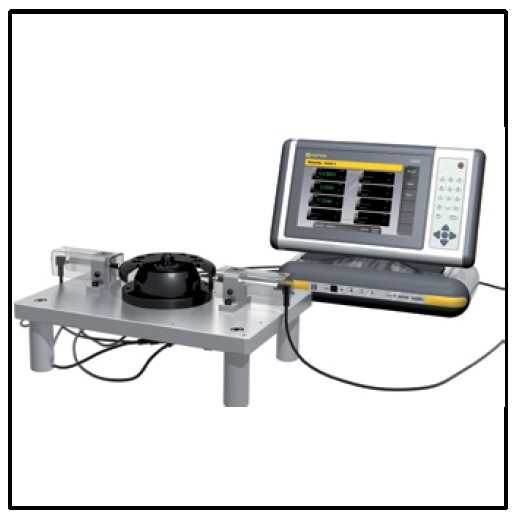

Capacitive probes connected to a D200S

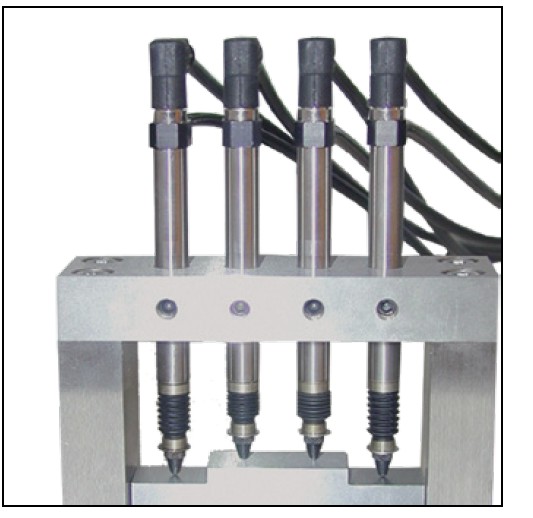

與夾具配套使用

Capacitive probes on a jig
